13_SERIES INSTALLATION
Plasterboard
To install the 13_series FLUSH in Plasterboard set and painted walls, you will use our 13-FMA Fixed Mounting Assembly. Suitable for both outlets and switch grids in the 13_series range.

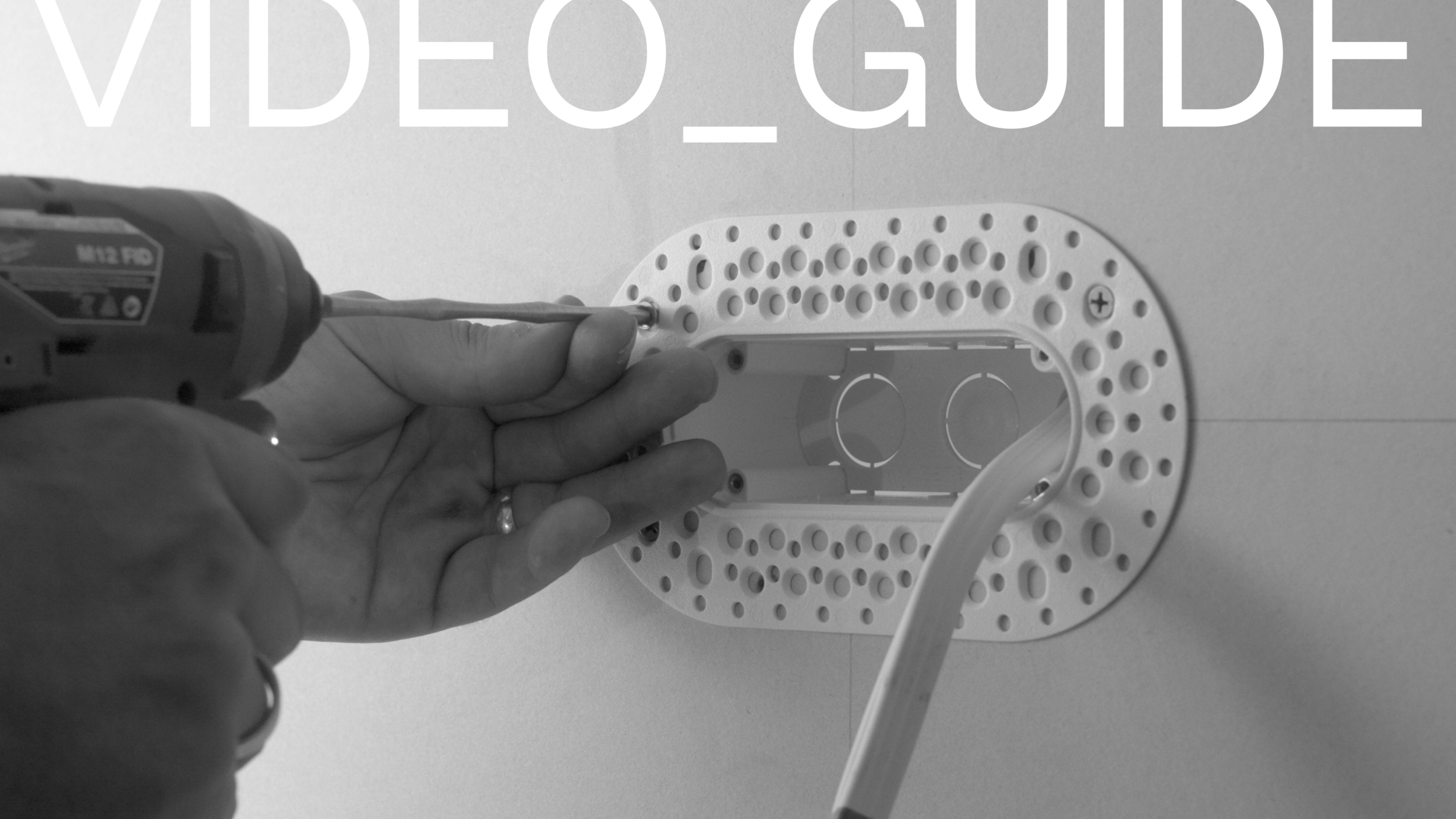

Video installation guide for Fixed Mounting Assembly _ 13-FMA

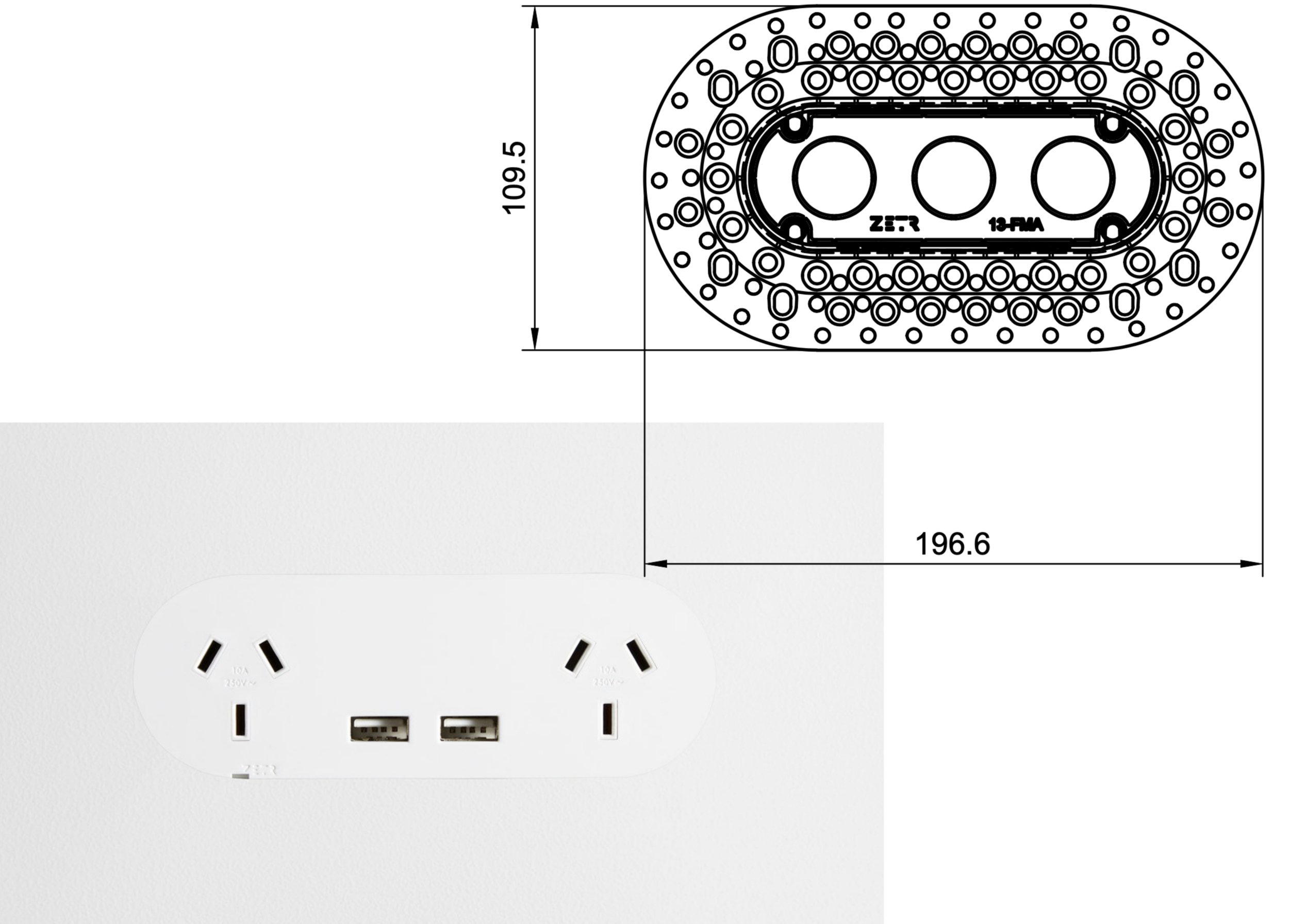

Specification
Download the SPEC SHEET for dimensions and specifications_
Install
For installation of the 13-FMA, follow the steps in the VIDEO_GUIDE above. The 13-FMA is installed after the walls are sheeted, with everything accomplished from the front. Download the 13-FMA Installation in Plasterboard Guide below_
Our outlets are auto-switched, with an internal shutter mechanism

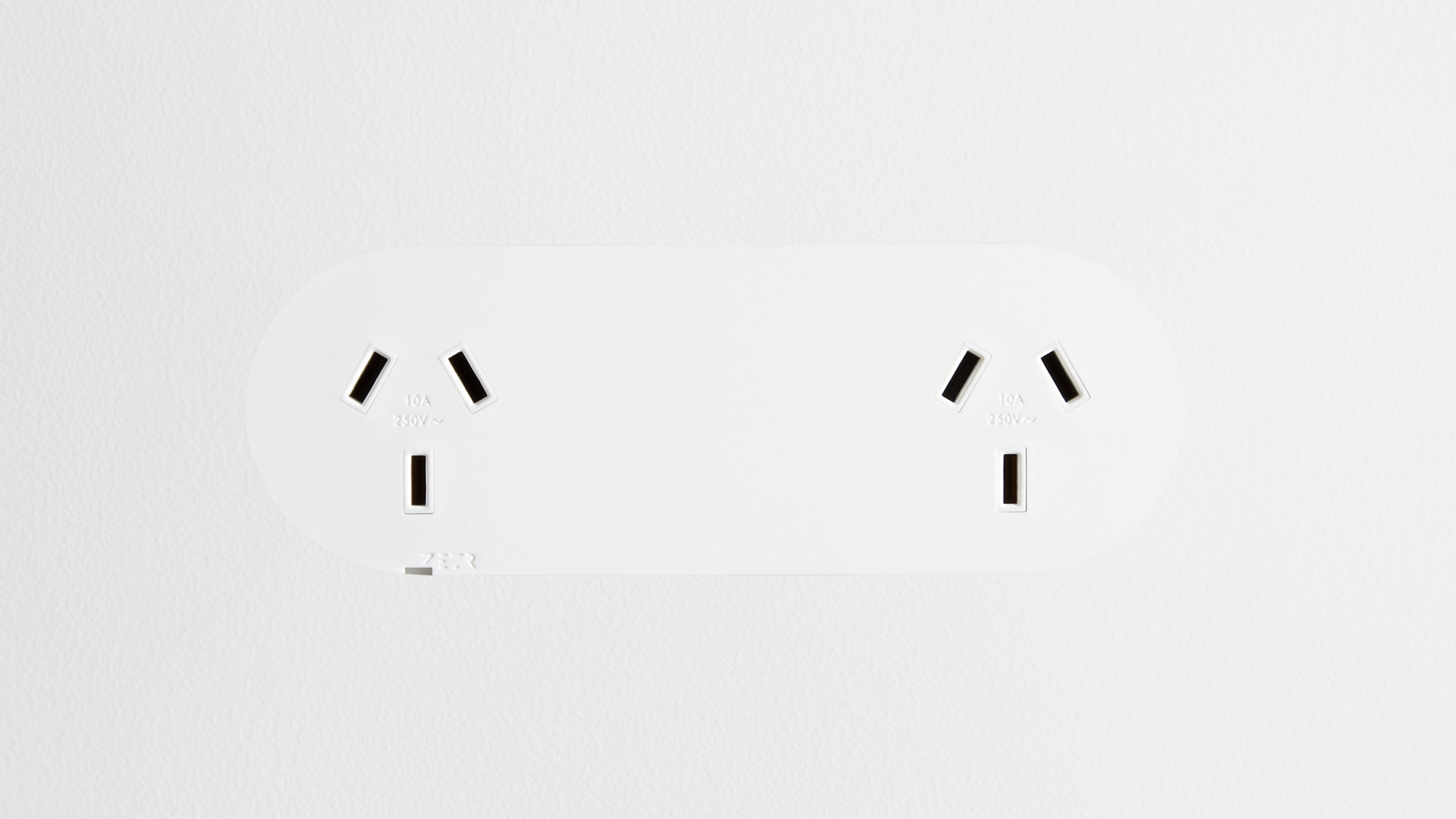

Double GPO _Black or White
Double GPO with Dual USB _Black or White
Installing a switch?
ZETR Switch Grid + Faceplate does not include mechanisms for switching, dimming and data. There are a number of suitable products available from any electrical wholesaler.
Download the Switch Mechanism Schedule to find the best product to suit your project.
Need a custom solution?
Contact our team to arrange PRICING or to discuss any custom product or installation enquiries_
All ZETR products are to be installed with care by a licensed electrician and skilled tradesman. Product installation must comply with Australian and New Zealand standards ASNZ3000. It is the installers responsibility to ensure correct and safe installation.
