DATA GRID - WHITE
DATA GRID - WHITE

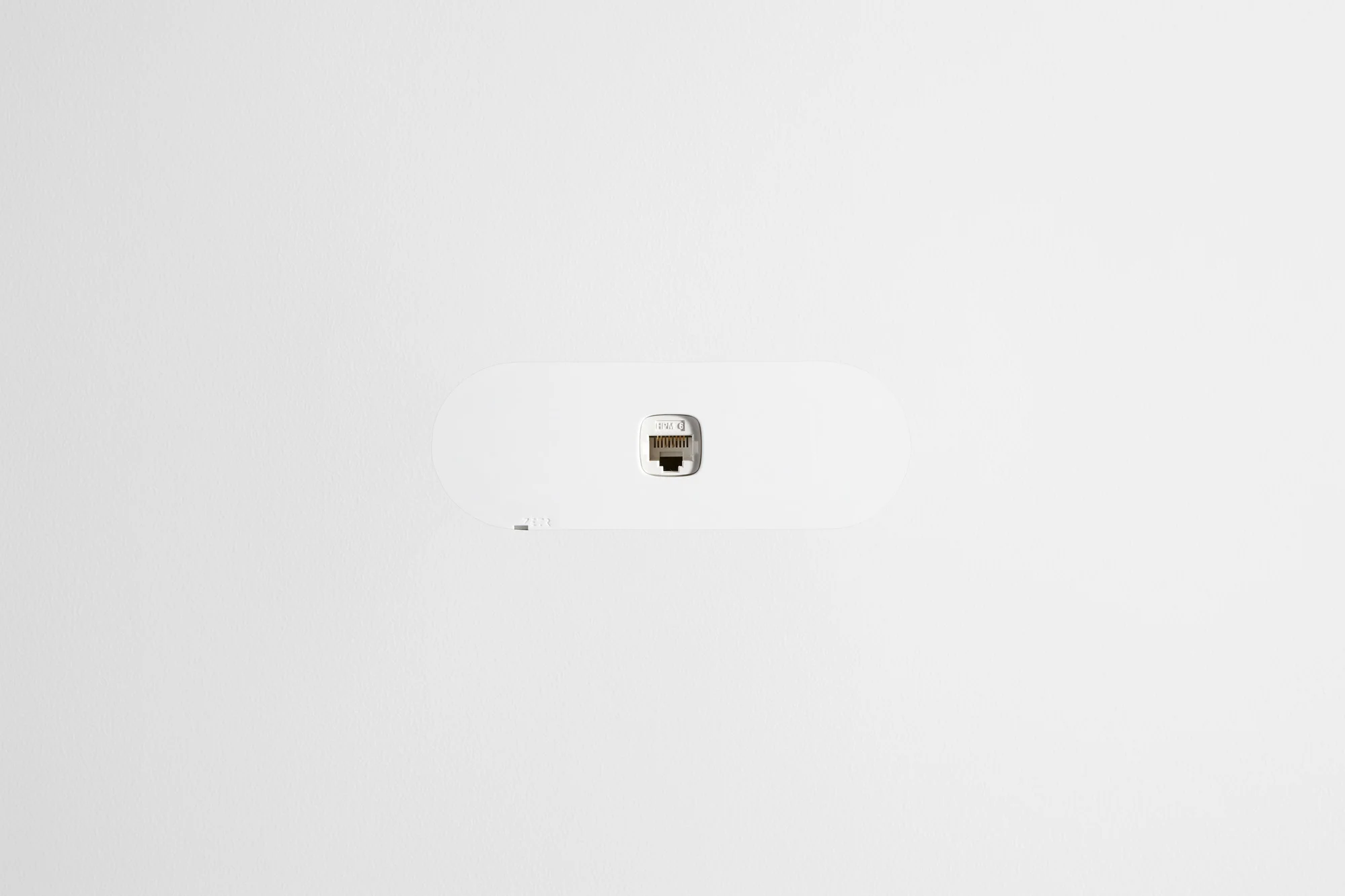

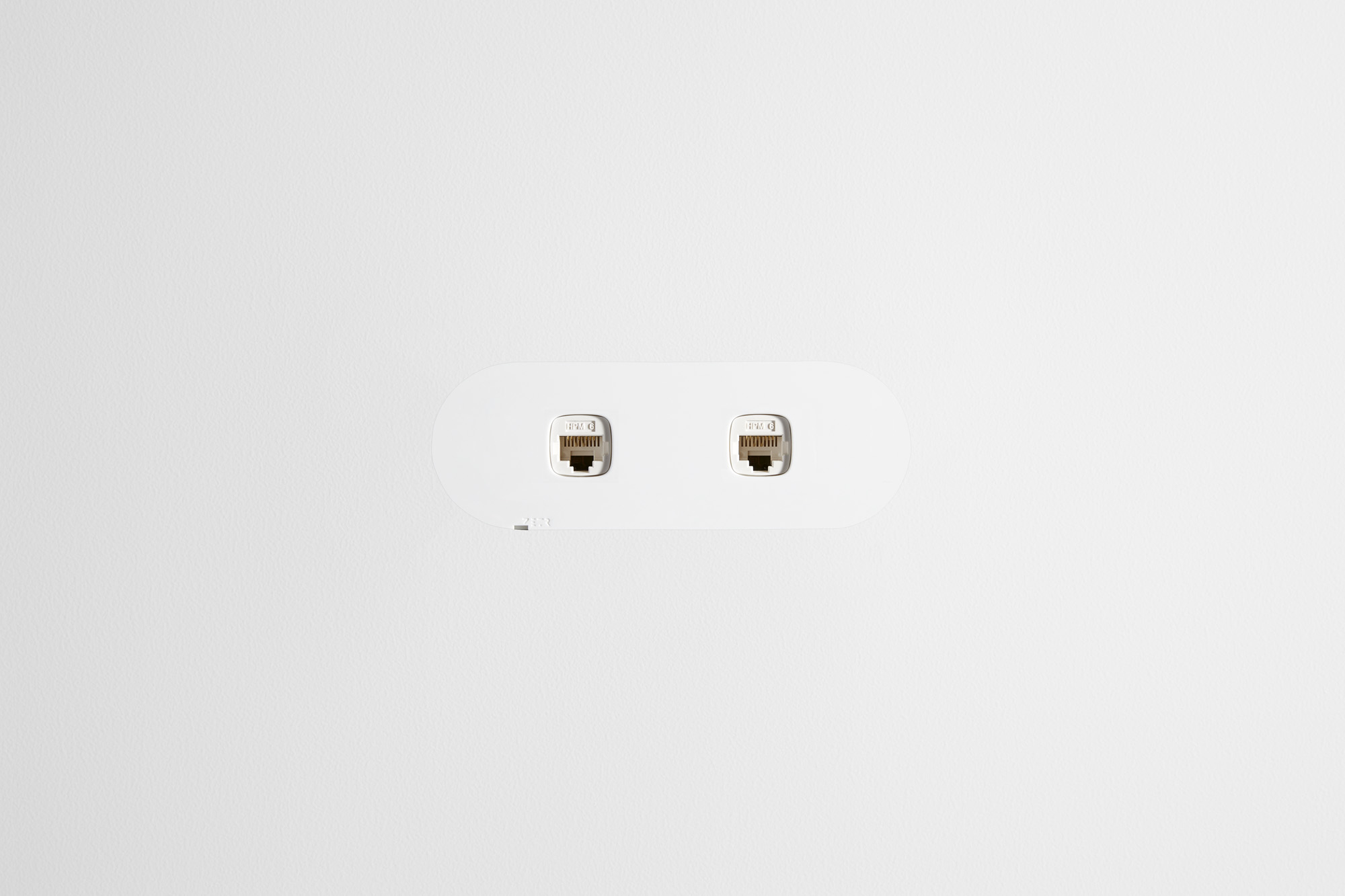

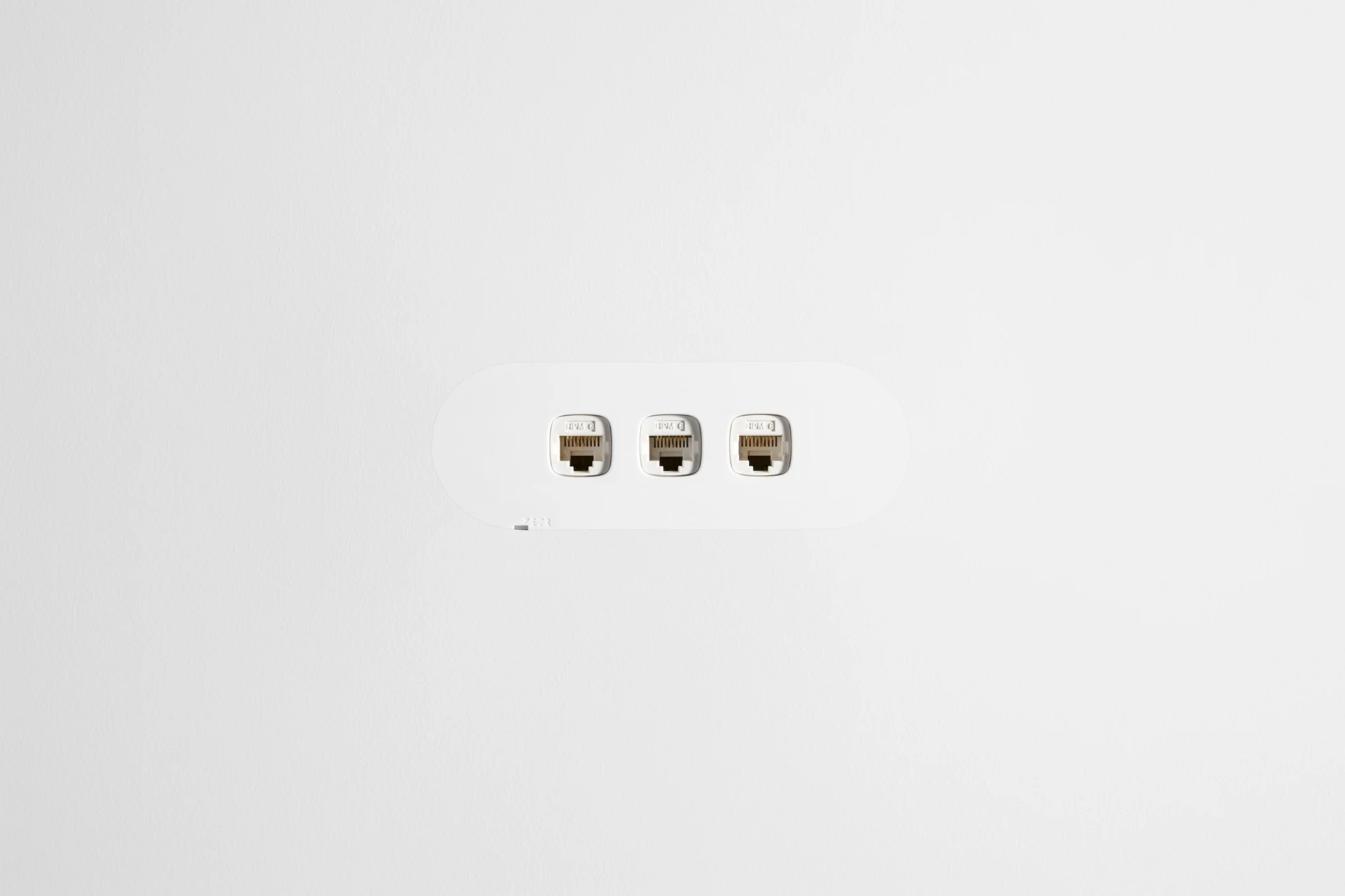

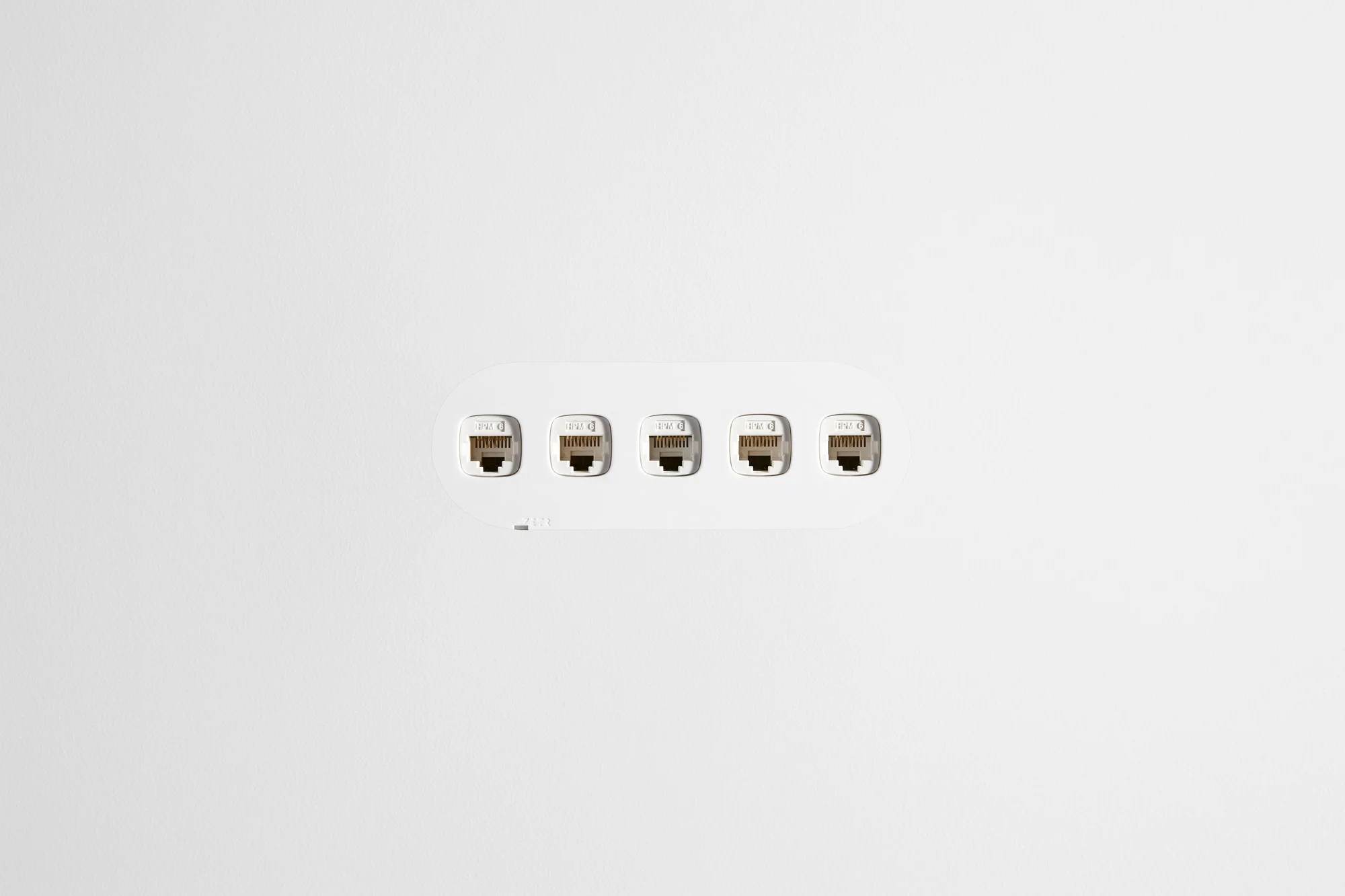

The ZETR data grid is a recessed, trim-less, and completely flush range of data grids in 1, 2, 3 and 5 gang options. Data mechanisms not included and to be purchased separately. ZETR data grids are designed to accommodate data outlets, USB outlets, telephone ports and other data accessories.
Suitable for new installations or retro-fit applications.
Suitable for commercial and residential installations.
Suitable for most surface thicknesses and varying wall types.
Surface Finish: Matt White
Switch Grid Depth: 7.5 mm
Switch Grid Height: 42 mm
Switch Grid Width: 129 mm
Switch Faceplate Height: 46 mm
Switch Faceplate Width: 132 mm
Material: PC (polycarbonate) for skin
Outlet Standard: Australian/New Zealand
Product Certifications: RCM Registered Australia/ New Zealand
Standards: AS/NZS 3112, AS/NZS 3100
Rated Current: 10 A, 250 V, AC, 50 Hz
Safety: Safety shutters included preventing insertion of foreign objects into the socket apertures.
Patent: International Patent Pending
To be mounted within the surface to achieve flush finish in conjunction with one of the below ZETR mounting assemblies:
Fixed Mounting Assembly (FMA) for plasterboard installation (53mm deep but can be altered in depth).
Adjustable Mounting Assembly (AMA) for all other installations such as stone, tile, timber and rendered walls (56mm deep).
The cover plate which is available in black and white is also designed to be match painted on site to the desired wall colour for true integration with the wall.
We are currently working on ways to custom match ZETR faceplate to adjacent finishes, Please enquiry with us directly for information and availability lead times.
All ZETR products are to be installed with care by a licensed electrician and skilled tradesman.
Product installation must comply with Australian and New Zealand standards ASNZ3000.
It is the installers responsibility to ensure correct and safe installation.
Please note: specifications are subject to change without prior notice
