DOUBLE OUTLET - BLACK

DOUBLE OUTLET - BLACK

0.00

ZETR 13-O-B

The ZETR double outlet is a recessed, trim-less, and completely flush outlet that integrates with the surrounding wall surface to provide minimal impact on the specified finish.

  • No on/off switch required, all ZETR outlets contain an auto switching mechanism which is engaged when the plug pins are inserted into the outlet keeping the finished face completely flush with the surface.

  • Suitable for new installations or retro-fit applications.

  • Suitable for commercial and residential installations.

  • Suitable for most surface thicknesses and varying wall types.

SPECIFICATIONS

  • Surface Finish: Matt Black

  • Outlet Depth: 32 mm

  • Outlet Body Height: 42 mm

  • Outlet Width: 129 mm

  • Embedding Depth: 32 mm (Including faceplate)

  • Outlet Faceplate Height: 46 mm

  • Outlet Faceplate Width: 132 mm

  • Material: PC (polycarbonate) for skin

  • Outlet Standard: Australian/New Zealand

  • Product Certifications: RCM Registered Australia/ New Zealand

  • Standards: AS/NZS 3112, AS/NZS 3100

  • Rated Current: 10 A, 250 V, AC, 50 Hz

  • Safety: Safety shutters included preventing insertion of foreign objects into the socket apertures.

  • Patent: International Patent Pending

  • Area: Interior

  • IP: 20

MOUNTING

To be mounted within the surface to achieve flush finish in conjunction with one of the below ZETR mounting assemblies:

  • Fixed Mounting Assembly (FMA) for plasterboard installation (53mm deep but can be altered in depth).

  • Adjustable Mounting Assembly (AMA) for all other installations such as stone, tile, timber and rendered walls (56mm deep).

FACEPLATES

  • The cover plate which is available in black and white is also designed to be match painted on site to the desired wall colour for true integration with the wall.

  • We are currently working on ways to custom match ZETR faceplate to adjacent finishes, Please enquiry with us directly for information and availability lead times.

INSTALLATION

  • All ZETR products are to be installed with care by a licensed electrician and skilled tradesman.

  • Product installation must comply with Australian and New Zealand standards ASNZ3000.

  • It is the installers responsibility to ensure correct and safe installation.

  • Installation Manuals



Please note: specifications are subject to change without prior notice

Quantity:
Add To Cart
 ZETR double outlet in matte black finished flush in plasterboard with our fixed mounting assembly.

ZETR double outlet in matte black finished flush in plasterboard with our fixed mounting assembly.

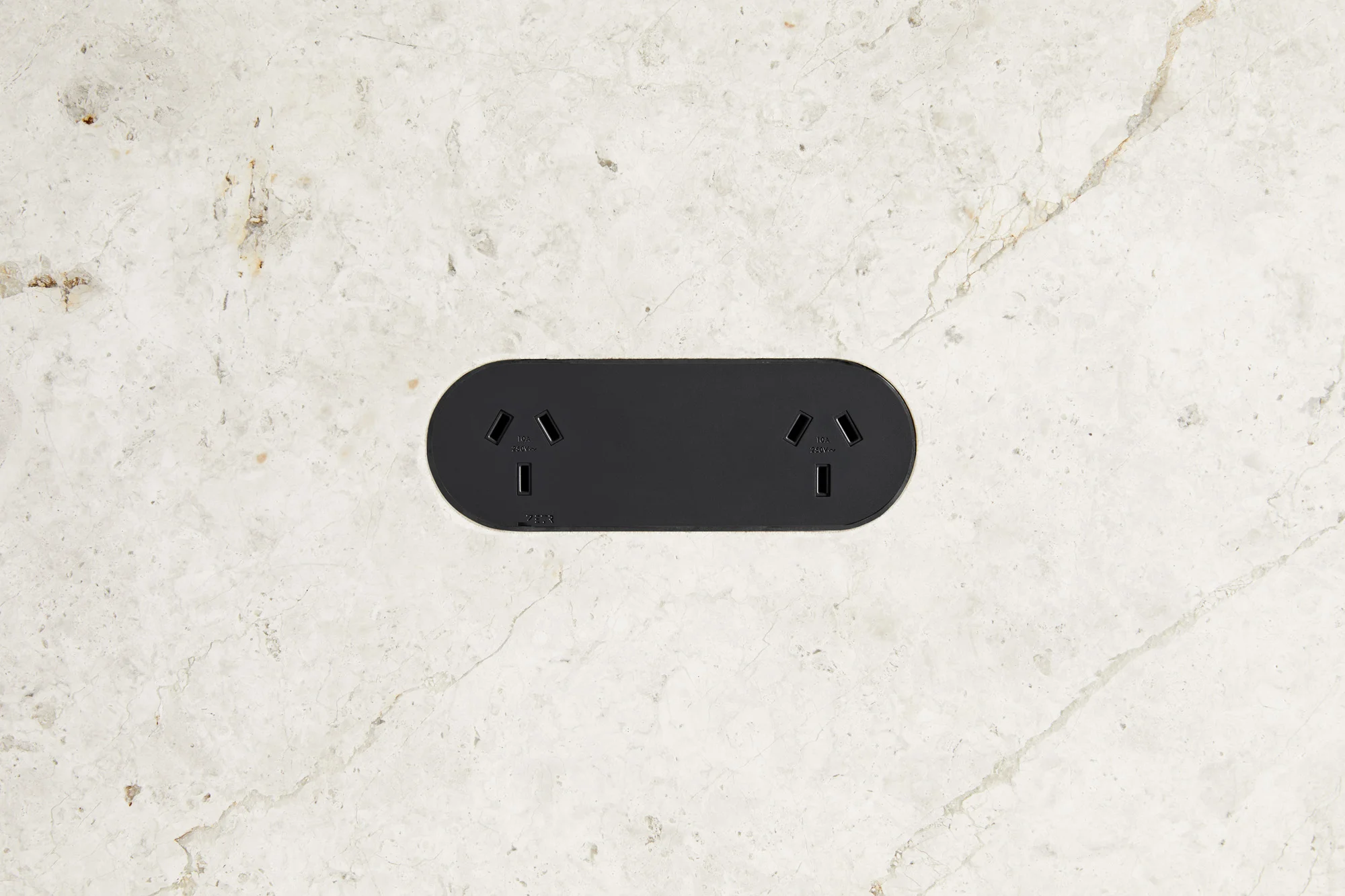

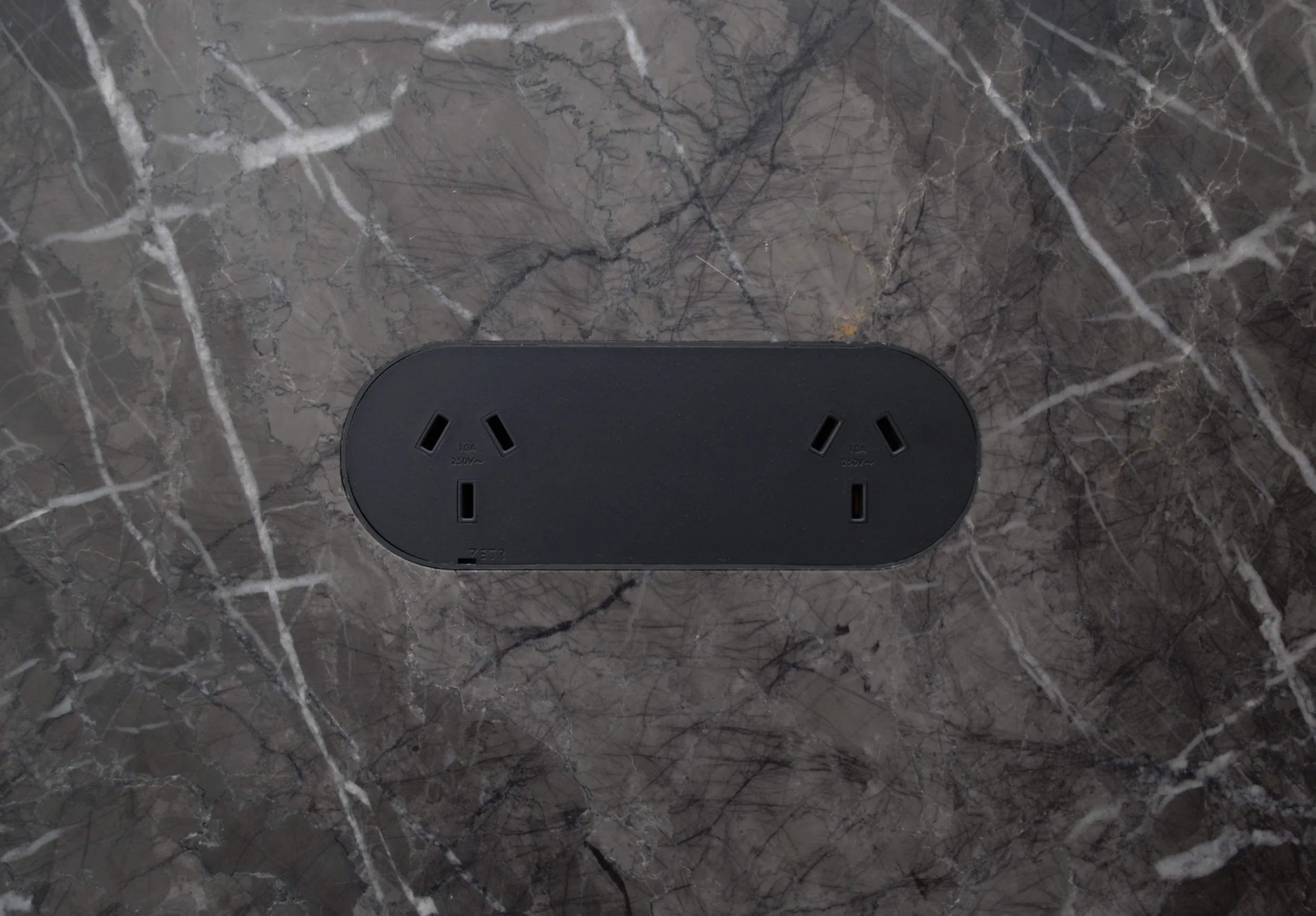

 ZETR double outlet in matte black finished flush in marble with our adjustable mounting assembly.

ZETR double outlet in matte black finished flush in marble with our adjustable mounting assembly.
