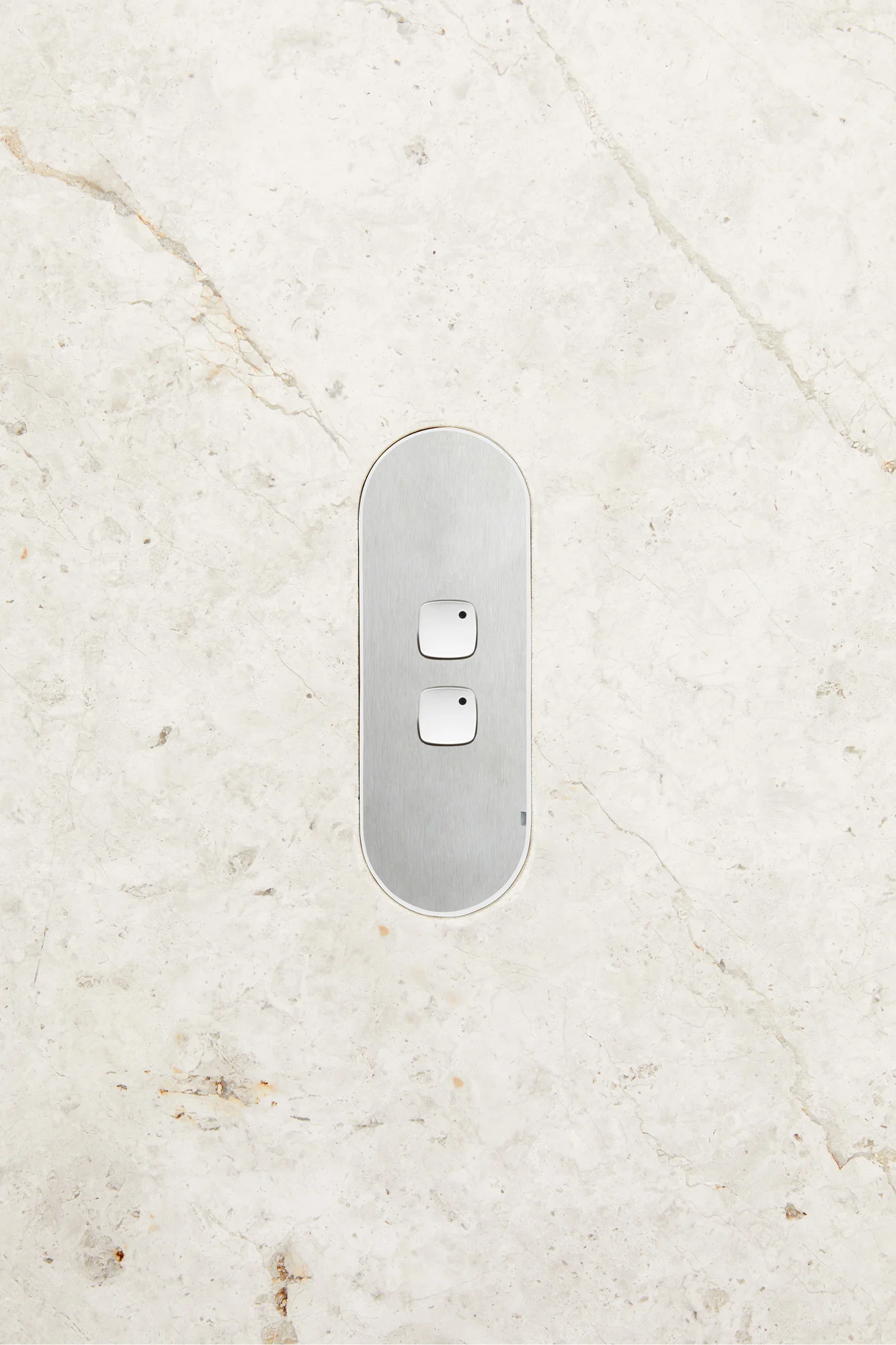

TWO GANG SWITCH GRID | STEEL

TWO GANG SWITCH GRID | STEEL

0.00

ZETR 13-2F-STEEL

ZETR_carbon, a selection of carefully curated metal power outlet and switch faceplates for the ZETR 13-Series. The ZETR_carbon faceplate range is designed and made in Australia, using high quality materials and machinery. We provide sourcing, design, and fabrication services for custom switch and power outlet faceplates and button covers in a variety of metal finishes including patina and polished brass, bronze, stainless steel and matte black steel.

CUSTOMISATION

Each ZETR_carbon faceplate is made to order from our Sydney studio.  Designers can choose from a stocked range of finishes including brass and stainless steel, or work with our team on specialist finishes such as brushed, polished or oxidised metals based on brief.

LEAD TIMES

Enquire direct for lead times based on material choice.

SUITABILITY

  • No on/off switch required, all ZETR outlets contain an auto switching mechanism which is engaged when the plug pins are inserted into the outlet keeping the finished face completely flush with the surface.

  • Suitable for new installations or retro-fit applications.

  • Suitable for commercial and residential installations.

  • Suitable for most surface thicknesses and varying wall types.

SWITCH MECHANISMS

  • Switch mechanisms not included and to be purchased separately.

  • ZETR switch grids are designed to accommodate pushbutton switches, universal dimmers, data outlets, USB outlets, telephone ports and other data accessories.  Optional ZETR brass button covers can be purchased separately.

  • ZETR switch grids also allow for integration with a number of automation systems. Please contact us directly for full specification details on automation.

SPECIFICATIONS

  • Surface Finish: Stainless Steel

  • Switch Grid Depth: 7.5 mm

  • Switch Grid Height: 42 mm

  • Switch Grid Width: 129 mm

  • Switch Faceplate Height: 46 mm

  • Switch Faceplate Width: 132 mm

  • Material: Stainless Steel

  • Outlet Standard: Australian/New Zealand

  • Product Certifications: RCM Registered Australia/ New Zealand

  • Standards: AS/NZS 3112, AS/NZS 3100

  • Rated Current: 10 A, 250 V, AC, 50 Hz

  • Safety: Safety shutters included preventing insertion of foreign objects into the socket apertures.

  • Patent: International Patent Pending

  • Area: Interior

  • IP: 20

MOUNTING

To be mounted within the surface to achieve flush finish in conjunction with one of the below ZETR mounting assemblies:

  • Fixed Mounting Assembly (FMA) for plasterboard installation (53mm deep but can be altered in depth).

  • Adjustable Mounting Assembly (AMA) for all other installations such as stone, tile, timber and rendered walls (56mm deep).

FACEPLATES

  • The cover plate which is available in black and white is also designed to be match painted on site to the desired wall colour for true integration with the wall.

  • We are currently working on ways to custom match ZETR faceplate to adjacent finishes, Please enquiry with us directly for information and availability lead times.

INSTALLATION

  • All ZETR products are to be installed with care by a licensed electrician and skilled tradesman.

  • Product installation must comply with Australian and New Zealand standards ASNZ3000.

  • It is the installers responsibility to ensure correct and safe installation.

  • Installation Manuals



Please note: specifications are subject to change without prior notice
